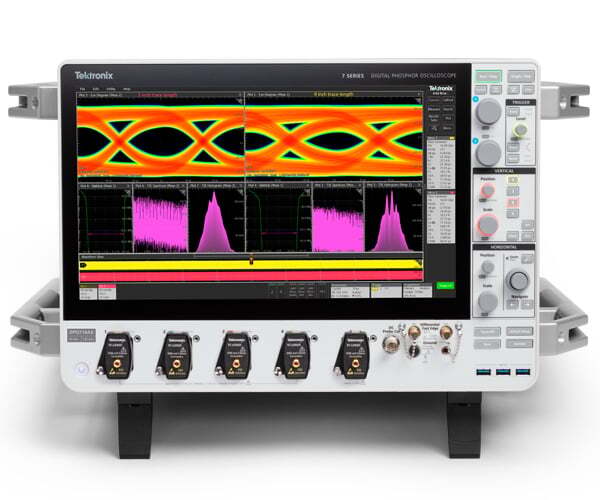

7 Series DPO
Digital Phosphor Oscilloscope
7 Series DPO
Digital Phosphor Oscilloscope
The 7 Series DPO delivers unparalleled signal fidelity, high ENOB, low noise, low jitter, fast measurement throughput, and an award-winning TekScope® user interface making it ideal for meeting the evolving needs of high-speed serial, high-energy physics, and key RF applications.
Bandwidth ranging from 8-25 GHz and compatible with TekConnect™ probes.
Bandwidth | Sample Rate | Record Length | Vertical Resolution |
| Up to 25GHz | Up to 125 GS/s | Up to 2 G | 10 bits |
Overview
Performance oscilloscope with low noise and high fidelity signal acquisition
With up to 25 GHz analog bandwidth, the 7 Series DPO provides the most accurate real time performance in its class:
- Low vertical (random) noise with high ENOB
- Fast throughput with 10 Gb Ethernet LAN SFP+ port
- Delightful, yet familiar built-for-touch UI and TekScopeTM software, available with either embedded (Linux) or Windows OS
The 7 Series’ low noise, high fidelity signal acquisition is critical for high bandwidth applications such as:
- Advanced research & investigation of transient phenomena
- Digital design & validation including signal integrity, jitter, and timing analysis
- Memory bus analysis and debug
- Compliance testing and debug of high speed serial interfaces for industry standards
- Analysis of signal integrity and power integrity in artificial intelligence data center development
- Spectral analysis of transient or wide-bandwidth RF
Key performance specifications
.
Input channels
- 4 TekConnect® each with TCA292D 50 Ω 2.92 mm input adapter
- 1 Aux In (TekConnect) with TCA292D 50 Ω 2.92 mm input adapter
Bandwidth (all analog channels)
- 8 GHz, 10 GHz, 13 GHz, 16 GHz, 20 GHz, 25 GHz (upgradable)
Sample rate (all analog channels)
- Real-time: 125 GS/s
- Interpolated: 12.5 TS/s
Record length (all analog channels)
- 500 Mpoints standard
- 1 or 2 Gpoints optional
Vertical resolution
- 10-bit ADC with high ENOB
Noise Reduction
- QuietChannel™ technology with Active CTLE (Continuous Time Linear Equalization) with 7 boost settings and one-button optimization routine which selects the optimal setting for the input signal to compensate for high-frequency signal channel loss.
Horizontal
- Precision timebase with low intrinsic jitter.
Pinpoint® digital triggering to full bandwidth
- Allows selection of virtually all trigger types on both A and B trigger events delivering the full suite of advanced trigger types for finding sequential trigger events
- Edge, Pulse width, Timeout, Runt, Window, Cycle, Rise/Fall Time, Visual Trigger
Low-latency Aux In analog triggering
- <20 ns from trigger in on Aux In and Ch1 to Aux Out BNC on rear panel.
Probing
- P7700 & P7600 TriMode™ probing system – perfectly matched signal connectivity, with calibration to the probe tip
- TCA292D TekConnect™ Adapter
Standard analysis
- Cursors: Waveform, V Bars, H Bars, V&H Bars
- Measurements: 36
- Plots: Time Trend, Histogram, Spectrum, and Phase Noise
- Math: Basic waveform arithmetic, FFT, and advanced equation editor
- Search: Search on any trigger criteria
- Jitter: TIE and Phase Noise
Optional analysis
- Advanced Jitter and Eye Diagram Analysis (Opt 7-DJA)
- Signal Integrity Modeling for Embedding/De-embedding and Equalization (Opt 7-SIM, Opt 7-SIMA)
- User-defined filtering (Opt 7-UDFLT)
- Mask/Limit Testing (Opt 7-MTM)
- Time Domain Reflectometry (Opt 7-TDR)
- Advanced Vector Signal Analysis (SignalVu-PC)
Optional compliance, protocol trigger, decode, and search
- PCIe, USB, DisplayPort, DDR and many other supports – refer to Ordering Information for complete list of supports
Arbitrary/Function Generator (Opt 7-AFG)
- 100 MHz waveform generation
- Single-ended and differential
- Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac
Trigger frequency counter (free with product registration)
- 11-digit
Display
- 15.6 inch (396 mm) TFT color
- High Definition (1,920 x 1,080) resolution
- Capacitive (multi-touch) touchscreen
Compute and storage
- 12-core processor, 96 GB System RAM
- ≥ 1.6 TB removable NVMe SSD (solid state drive)
- Std SSD: Closed Embedded OS, Opt SSD: Windows 10
Connectivity
- LAN (10G Ethernet on SFP+ and 10/100/1000 Base-T Ethernet on RJ-45)
- USB 3.0 Host (3 front & 4 rear), USB 3.0 Device (1 port rear)
- DisplayPort, HDMI
- Sample Clock In/Out, Ext Ref In, Ref Clock Out, Sync In/Out, Aux Out
e*Scope®
- Remotely view and control the oscilloscope over a network connection through a standard web browser
Dimensions
- 12.9 in (327 mm) x 22.1 in (560 mm) x 24.4 in (620 mm) (HxWxD with handles)
- 12.9 in (327 mm) x 17.9 in (454 mm) x 24.4 in (620 mm) (HxWxD without handles)
Weight
- DPO714AX: 84 lbs. (38.1 kg)
Warranty
- 1 year standard
