TA044

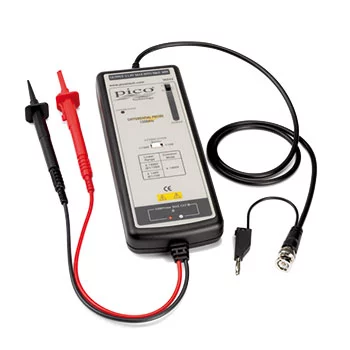

TA042 is an active differential probe suitable for high common-mode voltage measurement applications up to ±1400V (DC + peak AC). It is capable of acquiring higher speed signals of up to 100MHz. This differential probe extends the functionality of standard single-ended input oscilloscopes to allow a safe and accurate method of making high-voltage differential measurements. Applications include making safe measurements in power circuit applications and acquisition of low speed balanced differential signals found in serial communications buses.

• x100/x1000 attenuation ratio
• 1000V CAT III safety rating
• Temperature range from –10 to 40°C (operating)

Contents

Active differential probe, Four AA batteries.

Notes

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
