EMI & EMC Test Solutions ATU-514
ATU-514
Antenna Tripod (non-metallic, non-reflective)
Make: A H Systems Inc.
Non-returnable
₹198,000.00 ₹235,000.00
Share :
Product Details
Non-Metallic Tripod

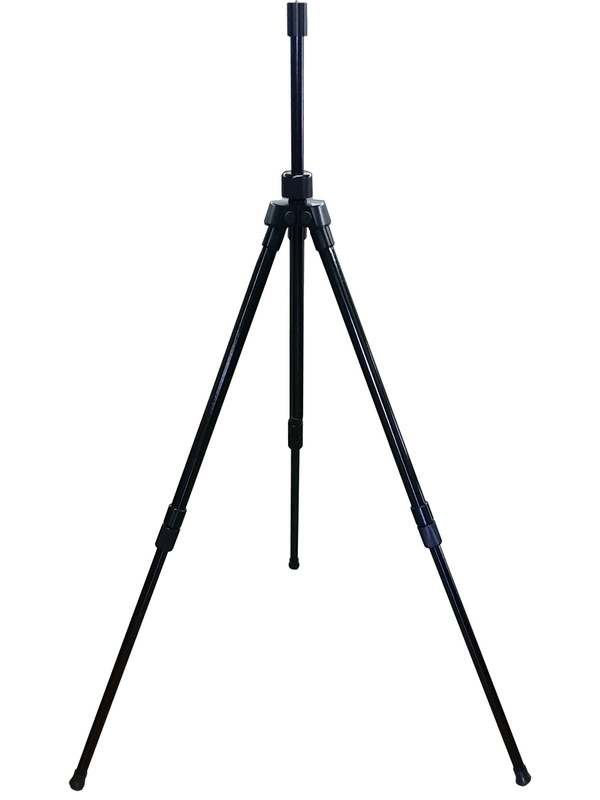

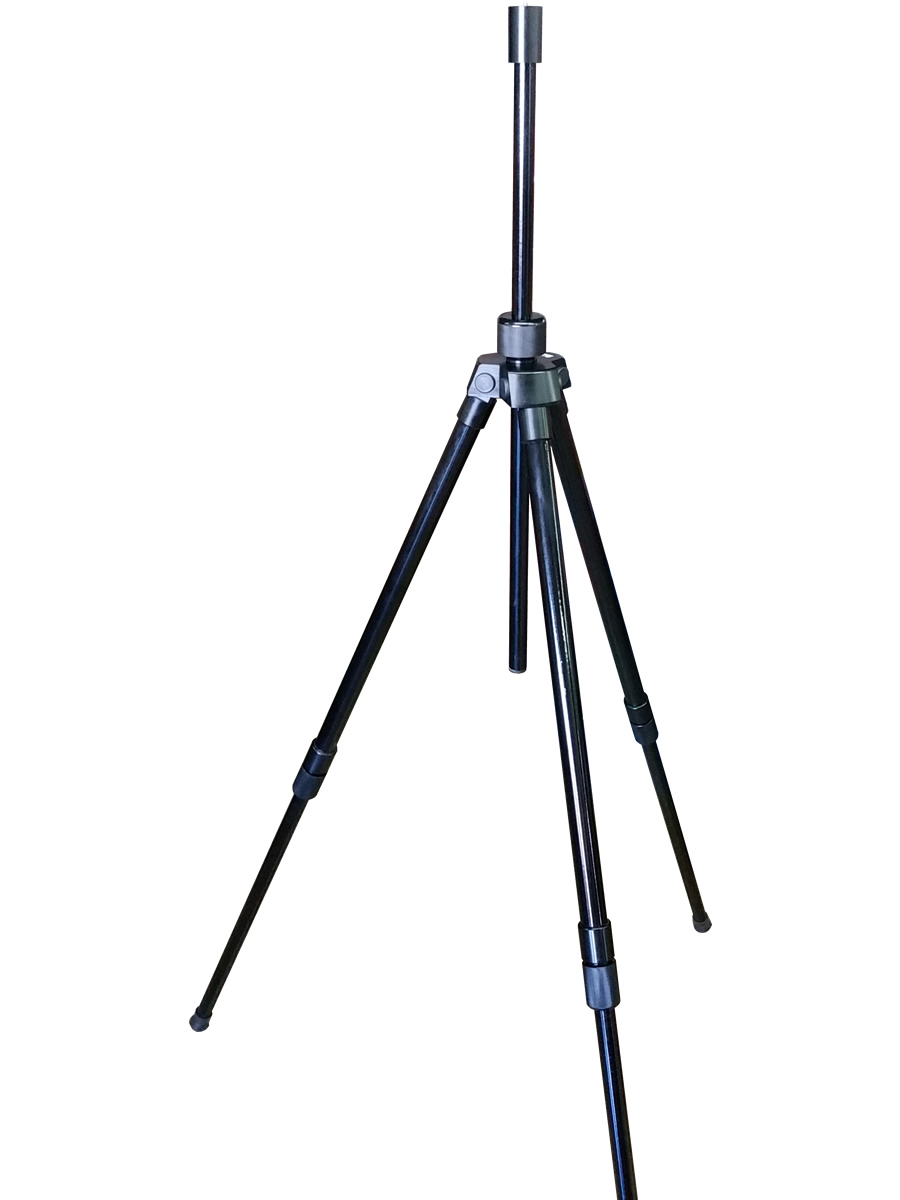

The ATU-514 Antenna tripod is a non-metallic tripod used to position, support, and stabilize most compliance test antennas.
Features
- non-metallic, non-reflective
- Easy height adjustments
- lightweight and durable
- Rugged Construction
- Three Year Warranty
The ATU-514 Plastic Tripod is not just any tripod; it's your solution to achieving precise and reliable results. Built with all non-metallic materials that will not influence your measurements, it's lightweight yet incredibly sturdy, perfect for holding the most sensitive equipment with minimal interference. Its quick setup and height adjustment capabilities will save you valuable time during your testing process, allowing you to focus on what truly matters - your data.
This "non-magnetic and non-reflective" antenna tripod is made especially for compliance testing. This collapsible tripod is built with all non-metallic materials that will not influence your antenna measurements. The ATU-514 is a no-nonsense antenna tripod that offers up to 50lbs. (22.6Kg) load capacity and has telescoping legs with an adjustable center mast to achieve heights up to 2 meters.
Specifications
| Max Height: | 79" (2 meters) |
| Min Height: (with center post flipped): | 33" (84cm) 4" (10cm) |
| Max Load: | 50 lbs. (22.6 Kg) |
| Materials: | Fiberglass, PEEK, Rubber and Delrin |
| Folded Dimensions: | 37" x 5.5" x 5.5" (94 x 14 x 14 cm) |
| Weight: | 6.2 lbs. (2.8 kg) |
Shipping Information:
Carton size: 46" x 9" x 9"
Shipping Weight: 14 lbs.
