PicoScope PP906
PP906

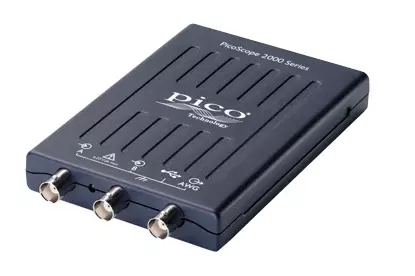

PicoScope 2204A 2 channel 10 MHz, 8-bit oscilloscope with probes Make: Pico Technology
Non-returnable
₹22,000.00
Share :
Product Details
- 2 or 4 analog channels
- MSO models with 16 digital channels
- Up to 100 MHz bandwidth
- Up to 1 GS/s sampling rate
- Up to 128 MS buffer memory
- Built-in arbitrary waveform generator
- USB-connected and powered
Specifications
Vertical (analog channels)
- Bandwidth (−3 dB):10 MHz
- Rise time (calculated):35 ns
- Vertical resolution:8 bits
- Enhanced vertical resolution:Up to 12 bits
- Input ranges:±50 mV ±100 mV ±200 mV ±500 mV ±1 V ±2 V ±5 V ±10 V ±20 V
- Input sensitivity:10 mV/div to 4 V/div
- Input coupling:AC/DC
- Input connector:BNC (f)
- Input characteristics:1 MΩ ± 1% || 15 pF ± 2 pF
- Analog offset range:None
- Analog offset accuracy:N/A
- DC accuracy:±3% of full scale ± 200 μV
- Overvoltage protection:±100 V (DC + AC peak)
Horizontal
- Real-time (block mode):100 MS/s
- Equivalent sampling (ETS mode):2 G/s
- USB streaming, PicoScope 7:1 MS/s
- USB streaming, PicoSDK:1 MS/s
- Shortest timebase:10 ns/div
- Longest timebase:5000 s/div (approx. 14 hours per waveform)
Buffer memory
- Block mode:8 kS
- USB streaming mode, PicoScope 7:100 MS shared between active channels
- USB streaming mode, PicoSDK:Limited only by PC
- Waveform buffers, PicoScope 7:10 000
- Segmented memory buffers, PicoScope 7:N/A
- Segmented memory buffers, PicoSDK:N/A
- Maximum waveforms per second:2000
- Initial timebase accuracy:±100 ppm
- Timebase drift:±5 ppm per year
- Sample jitter:30 ps RMS typical
- ADC sampling:Simultaneous
