DC Power Supplies

2260B-30-36

Name: 2260B-30-36
Brand: Tektronix
SKU: 2260B-30-36
Price: 234000.0 INR
Availability: InStock

Programmable DC Power Supply, 30V, 36A, 360W

Choose from analog control, USB, LAN, or optional GPIB interface for automated control

Make: KEITHLEY

Non-returnable

₹234,000.00 ₹278,000.00

Product Details

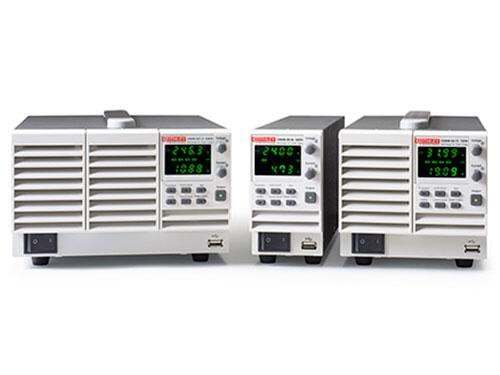

Series 2260B: Programmable DC Power Supplies

Key Features
• 360 W, 720 W, and 1080 W versions with voltages up to 800 V and currents up to 108 A

• Programmable voltage or current rise and fall times prevents damage to low impedance loads from inrush current

• Constant current priority setting reduces voltage and current overshoot when powering LEDs

• Programmable internal resistance simulates battery output

• Choose from analog control, USB, LAN, or optional GPIB interface for automated control

• Fit six 71 mm wide 360 W units or three 142 mm wide 720 W units or two 214 mm wide 1080 W units in a standard rack width to minimize bench and test system space
