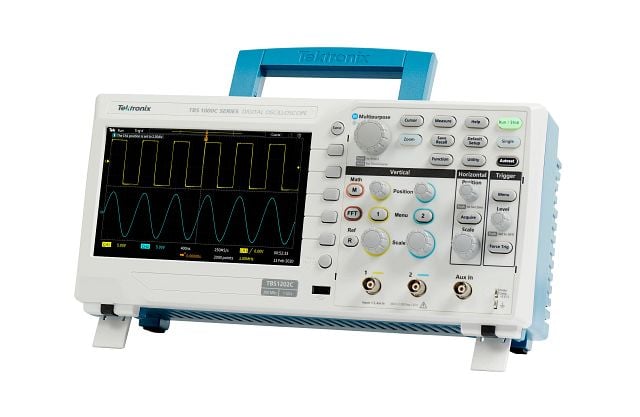

Benchtop Oscilloscopes TBS1102C
TBS1102C
Digital Storage Oscilloscope: 100 MHz bandwidth, 1 GS/s sample rate, 2 Channel, 20Kpts record length
Make: Tektronix Inc.
Non-returnable
₹129,000.00 ₹155,000.00
Share :
Product Details
The TBS1000C Series Digital Storage Oscilloscope offers affordable performance in a compact design. It is designed to meet the needs of today's educational institutions, embedded design engineers, and maker community. The instrument includes a 7-inch WVGA color display with up to 1 GS/s sample rate, bandwidths from 50 MHz to 200 MHz and a five-year warranty. The instrument comes with an innovative courseware system that integrates the lab exercises with step-by-step instructions for use, by the students. HelpEverywhere® system provides useful tips and hints throughout the user interface, to make the instrument more approachable to a new user.
Key performance specifications
- 200 MHz, 100 MHz, 70 MHz, and 50 MHz bandwidth models
- 2-channel models
- 1 GS/s sample rate on all channels
- 20k point record length on all channels
- Advanced triggers include pulse, runt, and line triggers
- Five-year warranty
Key features

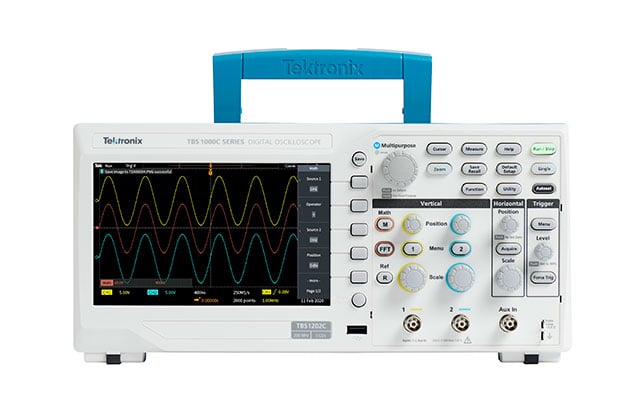

- 7-inch WVGA color display with 15 horizontal divisions that shows 50% more signal
- 32 automated measurements
- Dual window FFT with simultaneous time and frequency domain views
- Trigger frequency counter
- Pan and Zoom capability
- Multi-language user interface with support for 10 languages in the user interface and front panel overlay
- Small footprint and light weight
- Fanless design contributes to low noise operation
Connectivity
- USB 2.0 host port on the front panel for quick and easy data storage.

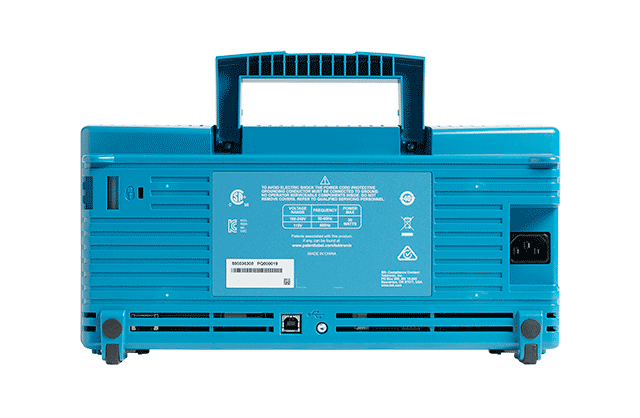

- USB 2.0 device port on rear panel to connect to a PC and remotely control the instrument.
